Video
Blow Mold Tooling

In bottle manufacturing industry, the blow molding technique which incorporates extrusion blow molding, injection blow molding and injection stretch blow molding is an indispensable tool. Blow mold involves a kind of device that shapes the bottles in mass production.

  • Blow Molds for Sidel Blow Molders

    Blow molds for Sidel cold filling bottles:
    Capacity: 200ml-2500ml
    Material: ALCOA A6061 for the mold cavity; A6061 for the base
    Applications: mineral water bottles, aseptic filling, etc
  • Blow Molds for Krones Blow Molders

    The adoption of hard oxidation technique upon the mold shell made from alloy 7075 has largely increased the hardness of the mold surface, as well as reduced the mold dimension and simplified the mold structure, dramatically cutting on the time and costs of mold reopening.
  • Blow Molds for KHS Blow Molders

    Blow molds for KHS cold filling bottle molders
    Capacity: 200ml-2000ml
    Material: ALCOA A6061 for the mold cavity; A6061 for the base
    Applications: mineral water bottles, aseptic filling bottles, carbonic acid bottles, etc
  • Blow Molds for Sacmi Blow Molders

    Blow molds for SACMI cold filling bottle molders:
    Capacity: 200ml-2000ml
    Material: ALCOA A6061 for the mold cavity; A6061 for the base
    Applications: bottles for mineral water, aseptic filling, carbonic acid, etc
  • Blow Molds for Newamstar Blow Molders

    Cold filling: ALCOA A6061 for the mold cavity; A6061 for the base
    Hot filling: S136 for the mold cavity; A6061 for the base
    Applications: bottles for mineral water, soft drink, juice, milk, etc
  • Blow Molds for Linear Blow Molders

    Material: ALCOA A6061 for the mold cavity; A6061 for the base
    This kind of mold is used for domestic linear blow molding machines. We provide molds with cavities from 1 to 9 for you to choose. Hot filling or cold filling molds can be fixed according to the molders’ properties.

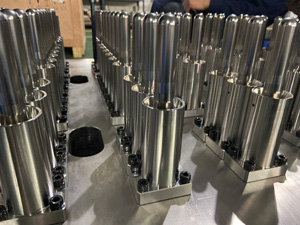

    2. Preform Injection Molds Available blow cavity: 32 cavities, 48 cavities, 56 cavities, 72 cavities, 96 cavities, 128 cavities, 144 cavities
      Suitable for: injection blow molding machine from different brands including HUSKY, NETSTAL, SIPA, KM, KAT, etc.
      Applications of preforms: used as beverage bottle, carbonated bottle, water bottle, edible oil bottle, medicine bottle, etc.

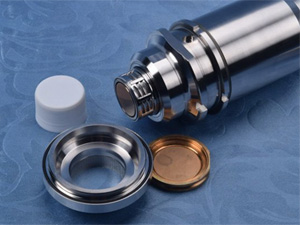

    2. Cap Compression Molds Made using S136 mold steel material, the cap compression molds features high life cycle and good polishing performance. It's mated with compression molding system to produce plastic caps with different sizes and types.
      Specification available: 1810mm, 1881mm, 38mm, 29/25mm, 30/25mm
      Applications of plastic caps: hot fill bottle, aseptic filling bottle, carbonated bottle, mineral water bottle, etc.
Spare Parts for Blow Molds and Blow Molders

Here we have a full view of some of the core components of the blow molds and blow molders. Demonstrated are separately the quick couplings, the preform grippers, the spindles, the shock absorbers, the stretch rods, the cooling water hoses, the clamping shafts, and the blow nozzles.

  • Quick Coupling

    This kind of quick coupling is an oil-resistant, acid & alkali resistant, as well as pressure-resistant hydraulic element equipped on the pneumatic pipe system. Its high utility has made it accepted in many industries. The coupling is able to work with various kinds of hoses such as metal hoses, rubber hoses, nylon hoses and plastic hoses.
  • Preform Gripper

    BJY produces various specifications of grippers basing on the different bottle molds. A heat treatment or QPQ process will be given for our raw material to add to its hardness as well as reliability and durability. Applications: blow molding machines form Sidel, Krones, SACMI, Newamstar, Tech-Long, etc.
  • Spindle

    As a rotating axis of a structure, spindle is a core component used in a wide range of machines. Applications: Blow molding machines from Sidel, Krones, SACMI, Newamstar, Tech-long etc. Specifications of the bottle molds: PCO1810, PCO1881, 3025, 38, etc.
  • Shock Absorber

    With large energy absorption capacity, long life, and low noise, our shock absorbers have won large popularity in keeping the normal running of machines and extending the life of molds. BJY possesses a professional simulation platform to demonstrate the performance of the shock absorber during a real crash situation.
  • Stretch Rod

    The stretch rod is made from S136. We give an abrasion treatment upon its surface to realize a hardness of HV700. Applications: hot filling bottles, cold filling bottles, aseptic bottles, soft drink bottles, etc. Uses: blow molding machines of Sidel, Krones, Newamstar, Tech-Long, among others.
  • Cooling Water Hose

    The hoses are mainly used for transporting the cooling water for the molds on Krones blowing machines. We import the hydraulic hoses from Parker to ensure the maximum allowable pressure. Our cooling water hose for blow molding machine is of high flexibility thus you can match is with different connectors.
  • Clamping Shaft

    Our clamping shaft is used for the mold shell of blowing device. After a special treatment, the clamping shaft is of high intensity and good abrasion resistance performance.
  • Blow Nozzle

    Our blow nozzle is widely accepted in various kinds of rotating blowing device which are applied in producing hot filling bottles, cold filling bottles, aseptic filling bottles, and soft drink bottles. It shows perfect performance in sealing, deformation resistance, and high pressure resistance.

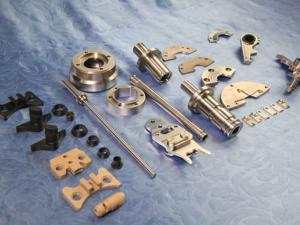

    2. Spare Parts for Filling Machines

      Our rotation stopper is designed to fix the bottle during the sealing operation of the filling equipment. We have modified and hardened the sharp end of the stopper to improve the stopping result and extend its life. Parts of our rotation stoppers are endowed with the detachable blades.

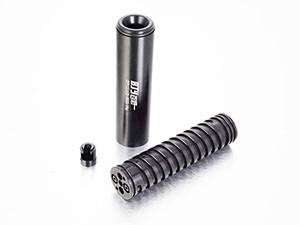

    2. Spare Parts for Injection Molding Machines

      The spare parts for injection molding machine are made from ALCOA A6061. A blackening treatment is operated upon its surface for a rust protection purpose. It is mainly applied in cooling and delivering the bottle molds of the injection molding equipment from HUSKEY.

1. Blow molds
With years’ experience, BJY is competent in producing a wide range of high-quality blow molding machines for Sidel, Krones, KHS, SACMI, and Newastar. The machines are widely applied in producing hot filling bottles, cold filling bottles, aseptic filling bottles, among others.

2. Spare parts for blow molds and blow molders
The spare parts for molds and blow molders we are providing include quick couplings, preform grippers, spindles, shock absorbers, stretch rods, cooling water hoses, clamping shafts, and blow nozzles.

3. Spare parts for filling machines
In BJY you can find all kinds of spare parts for filling machines, such as rotation stopper. These high-quality spare parts contribute to extend the machine’s life.

4. Spare parts for labeling machines
Our spare parts for labeling machines are suitable for the SACMI. They are made from ALCOA A6061 for high hardness.

5. Spare parts for injection molding machines
The spare parts for injection molding machines made by BJY are mainly applied in cooling and delivering the bottle molds of the injection molding equipment from HUSKEY.
