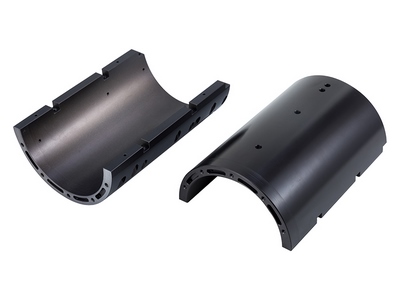

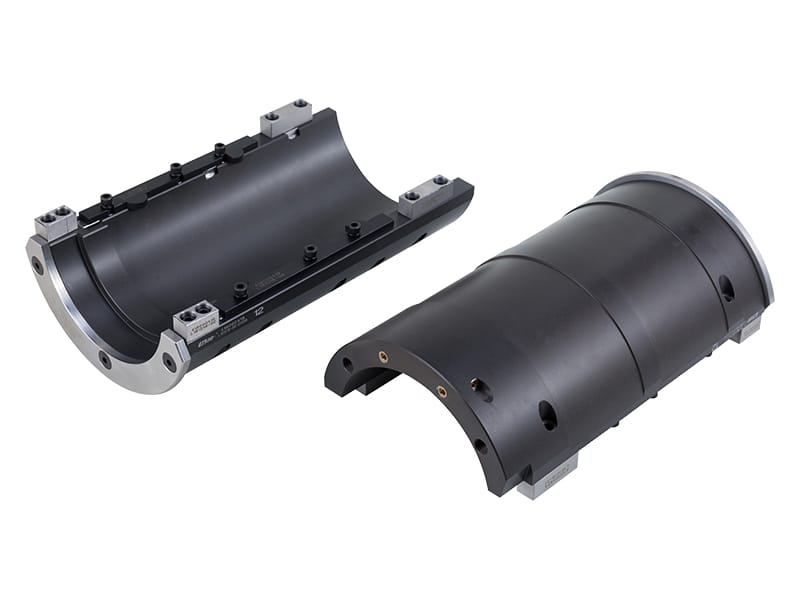

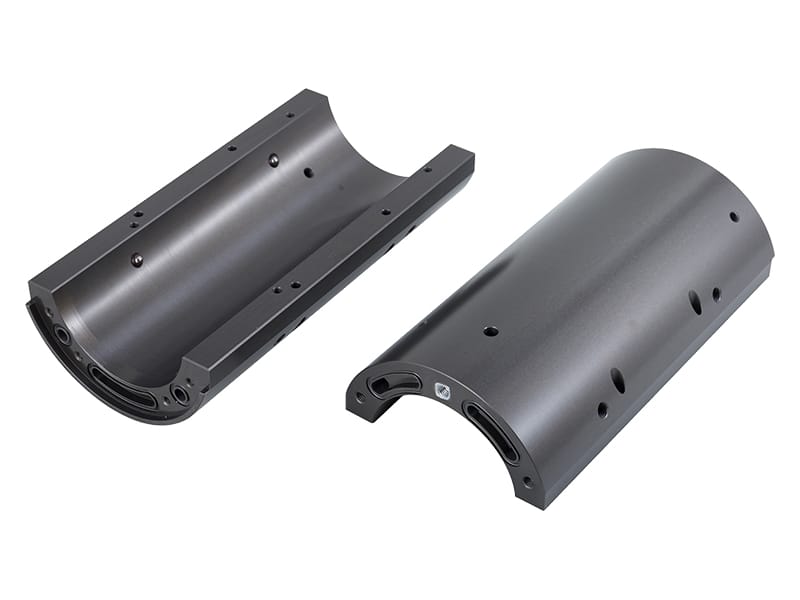

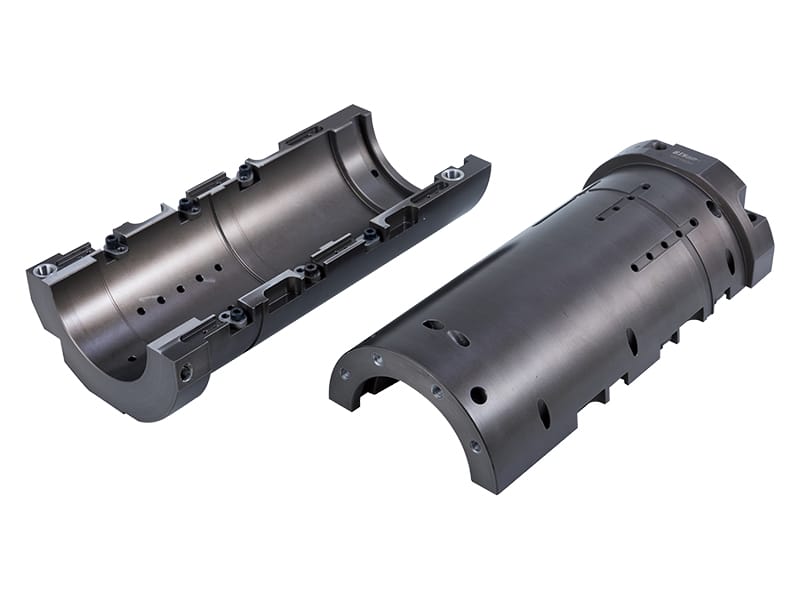

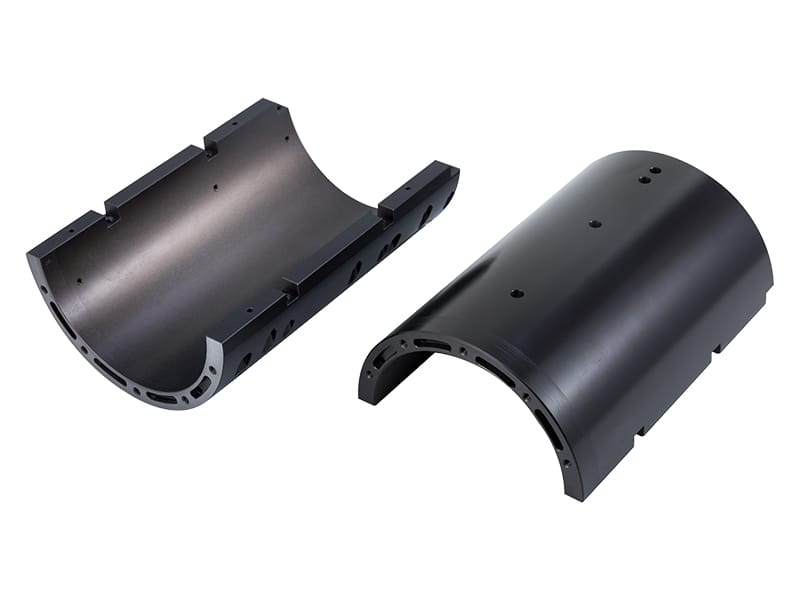

Mold Shell for PET Blowing Mold
  • Mold Shell for PET Blowing Mold
  • Mold Shell for PET Blowing Mold
  • Mold Shell for PET Blowing Mold
  • Mold Shell for PET Blowing Mold

Mold Shell for PET Blowing Mold

Known as the backplate, the mold shell is the cornerstone of rotary PET blow molding, engineered for rapid cooling. This vital component keeps molds at optimal temperatures during operation, preventing damage from heat buildup and ensuring flawless bottle formation. For large-capacity bottles, we seamlessly integrate the mold shell with the mold itself, delivering unmatched performance and precision.

Request a Quote

The mold shell, often called the backplate, is the heart of rotary PET blow molding, driving molding efficiency, bottle quality, and equipment longevity. Its critical role shines through in these key areas:

Structural Resilience Built to endure high-speed rotation (producing 30,000–50,000 bottles daily) and intense blow molding pressures, our mold shells undergo advanced heat treatment to prevent deformation, maintaining precision over the long haul.
Precise Temperature Control Integrated with high-efficiency cooling channels, the mold shell ensures rapid, uniform heat dissipation (temperature variation ≤±2°C). This prevents uneven crystallization or shrinkage, delivering consistent bottle clarity and wall thickness.
Modular Flexibility Featuring a split design, our mold shells allow quick swaps of inserts for different bottle shapes, minimizing downtime and boosting production line adaptability.
Energy Efficiency Lightweight structures, such as hollowed designs, reduce rotational energy demands, while optimized cooling channels cut water usage, achieving 10%–15% energy savings overall.
How importance of the mold shell for rotary PET blowing mould?

The mold shell, also known as the backplate, is a critical component tailored specifically for PET blow molding, delivering precision and efficiency in crafting top-quality PET bottles. Its sophisticated design ensures exact shaping and molding, producing consistent, defect-free bottles. This precision is essential for businesses striving to uphold exceptional quality and uniformity across their production lines.

What is a Mold Shell?

The mold shell, or backplate, is mounted on the mold’s rear, serving multiple key functions. It reinforces mold thickness, facilitates water transfer for cooling, and provides secure mounting to the machine’s platen.

Why is a Backplate Essential?

A standard feature in blow molding machines, the backplate is indispensable. Its primary role is to manage heat by circulating cold water through integrated channels, rapidly cooling the mold to prevent damage and ensure high-quality bottle formation.
