Blow Mold Tooling

As an experienced blow mold manufacturer, we provide customized blow molds including mold design and manufacture, and repair mold component tooling according to customer requirements.

We can make high quality injection molded preforms of various shapes for plastic containers and plastic bottles. We make blow moulds for different market applications including chemical plastic container, medical packaging, food container, plastic bucket, beverage packaging and industrial liquid packaging.

With abundant resources for manufacturing blow molds including CNC machining, precision metal manufacturing and strict inspection, we are able to make quality precision blow molds, ensuring that the plastic bottles and containers can be produced with nice and smooth surfaces.

The plastic molding products can be used in various plastic industries. PVC, HDPE, PPE and PC may be the popular plastic materials for making blow molded plastic products.

We also consider your cost, so we improve every aspect to reduce cost of the blow mold manufacturing while enhancing the production efficiency.

In bottle manufacturing industry, the blow molding technique which incorporates extrusion blow molding, injection blow molding and injection stretch blow molding is an indispensable tool. Blow mold involves a kind of device that shapes the bottles in mass production.

Several years’ manufacturing experience in bottle blowing industry allows BJY to be familiar with all kinds of bottle blowing devices, such as rotary blow molding machines and linear blow molding machines. BJY provides blowing moulds for both cold filling and hot filling bottles.

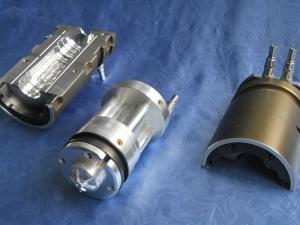

    1. Blow Molds for Sidel Blow Molders Blow molds for Sidel cold filling bottles:
      Capacity: 200ml-2500ml
      Material: ALCOA A6061 for the mold cavity; A6061 for the base
      Applications: mineral water bottles, aseptic filling, etc
      Inquiry Form

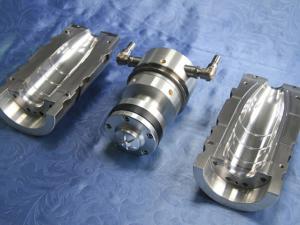

    1. Blow Molds for Krones Blow Molders The adoption of hard oxidation technique upon the mold shell made from alloy 7075 has largely increased the hardness of the mold surface, as well as reduced the mold dimension and simplified the mold structure, dramatically cutting on the time and costs of mold reopening. Inquiry Form

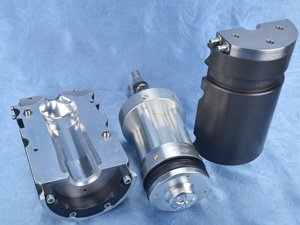

    1. Blow Molds for KHS Blow Molders Blow molds for KHS cold filling bottle molders
      Capacity: 200ml-2000ml
      Material: ALCOA A6061 for the mold cavity; A6061 for the base
      Applications: mineral water bottles, aseptic filling bottles, carbonic acid bottles, etc
      Inquiry Form

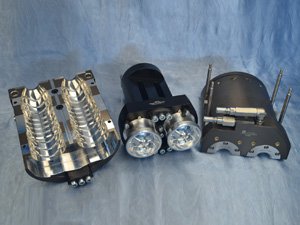

    1. Blow Molds for Sacmi Blow Molders Blow molds for SACMI cold filling bottle molders:
      Capacity: 200ml-2000ml
      Material: ALCOA A6061 for the mold cavity; A6061 for the base
      Applications: bottles for mineral water, aseptic filling, carbonic acid, etc
      Inquiry Form

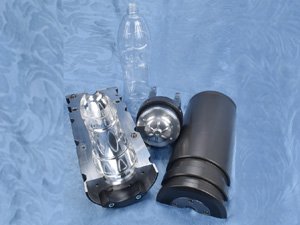

    1. Blow Molds for Newamstar Blow Molders Cold filling: ALCOA A6061 for the mold cavity; A6061 for the base
      Hot filling: S136 for the mold cavity; A6061 for the base
      Applications: bottles for mineral water, soft drink, juice, milk, etc
      Inquiry Form

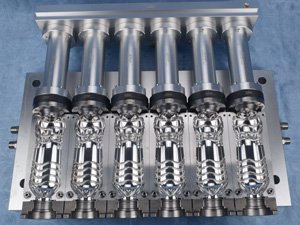

    1. Blow Molds for Linear Blow Molders Material: ALCOA A6061 for the mold cavity; A6061 for the base
      This kind of mold is used for domestic linear blow molding machines. We provide molds with cavities from 1 to 9 for you to choose. Hot filling or cold filling molds can be fixed according to the molders’ properties.
      Inquiry Form
Type Diameter (mm) Height (mm)

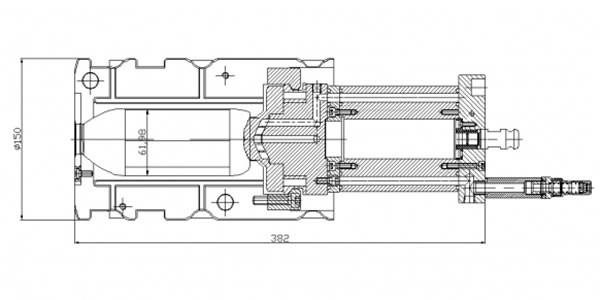

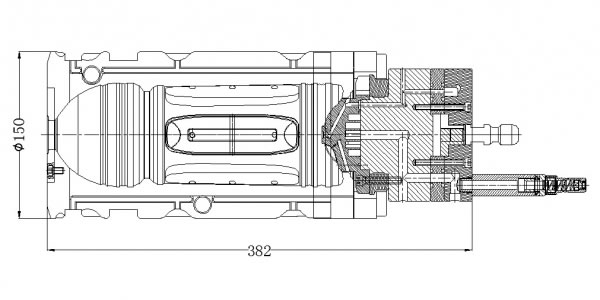

Blow molds for Sidel blow molders
150 382

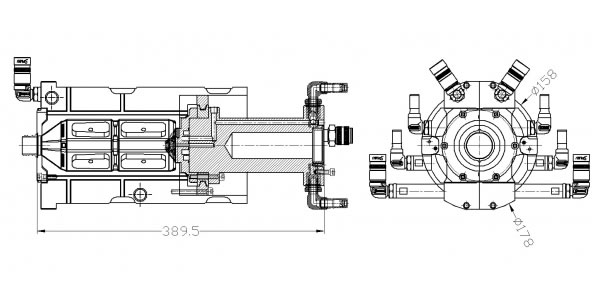

Blow molds for Krones blow molders (hot-molded)
160 389.5

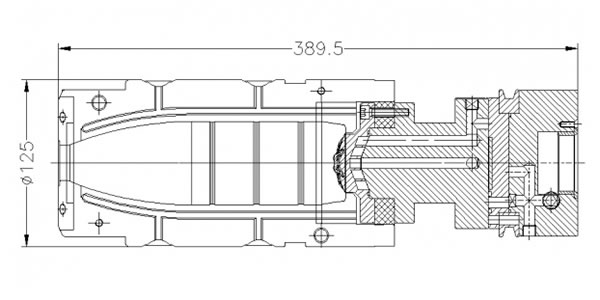

Blow molds for Krones blow molders (cold-molded)
125 389.5

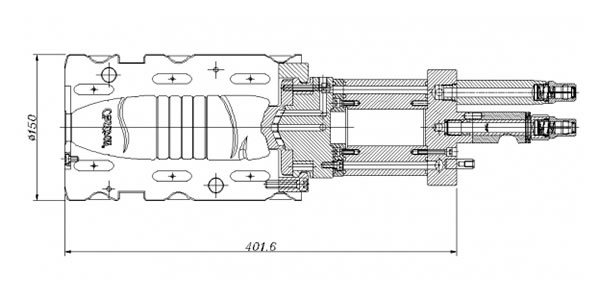

Blow molds for KHS blow molders
150 401.6

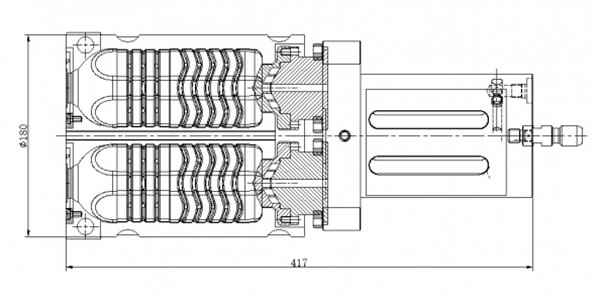

Blow molds for SACMI blow molders (dual-chamber)
180 417

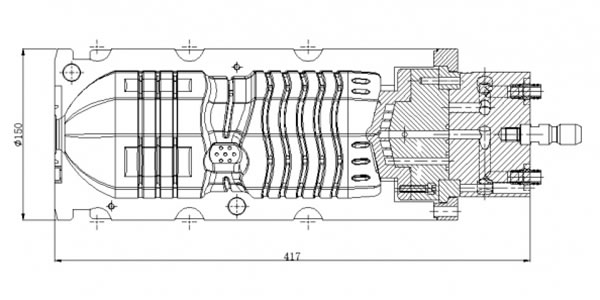

Blow molds for SACMI blow molders (single-chamber)
150 417
Blow molds for Newamstar blow molders
150 382

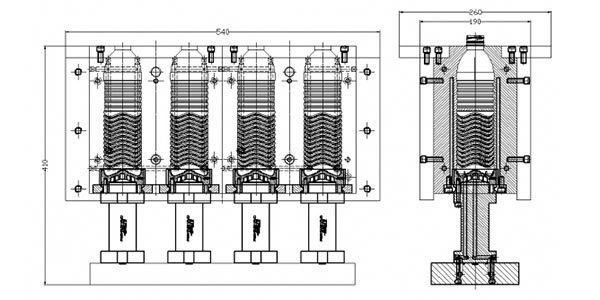

Blow molds for linear blow molders
