PRECISION PLASTIC MOLD TOOLING SOLUTIONS
Blow molds, injection molds, cap molds, and compatible components for molding systems
PET Preform Injection Molds
  • PET Preform Injection Molds
  • PET Preform Injection Molds
  • PET Preform Injection Molds

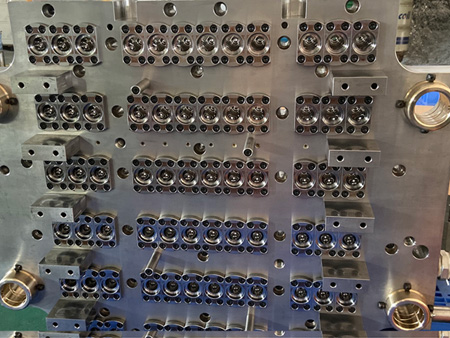

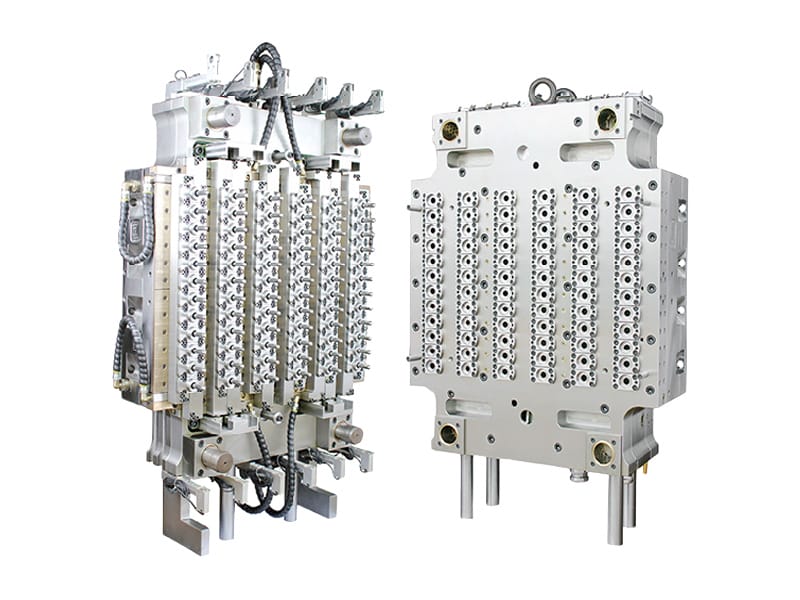

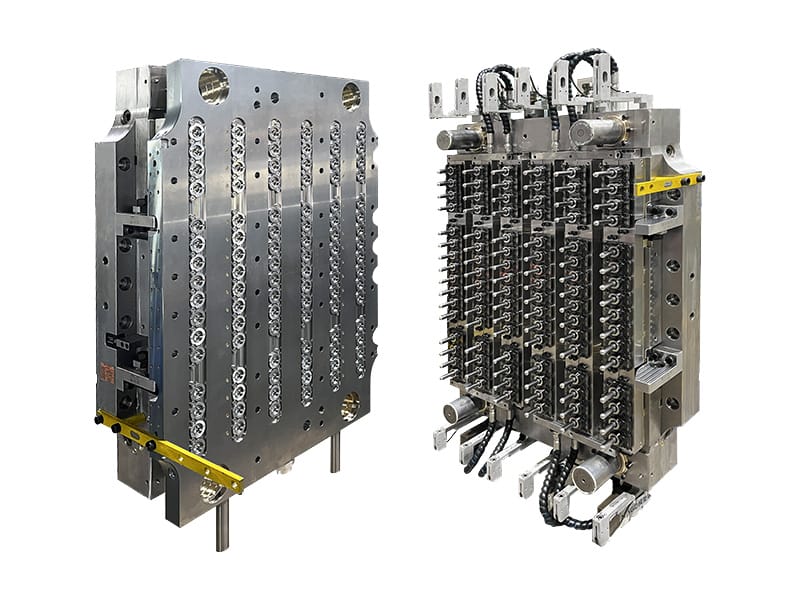

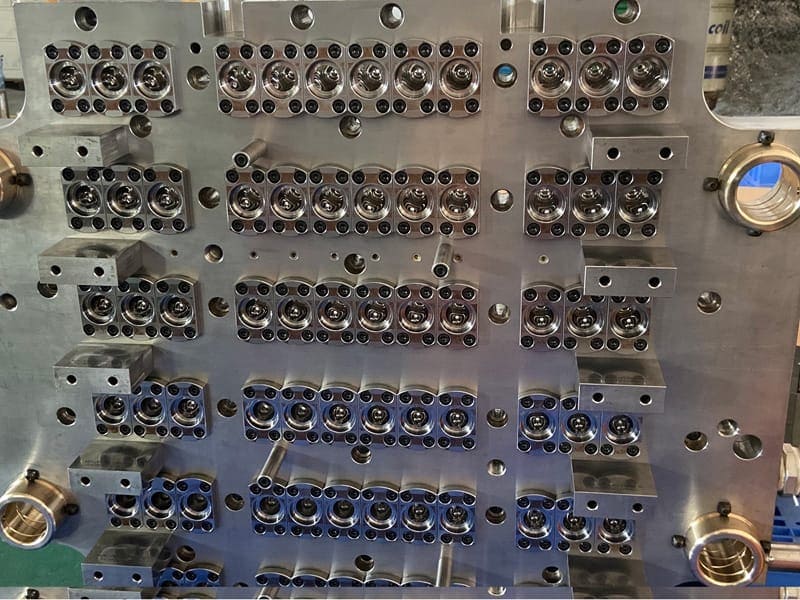

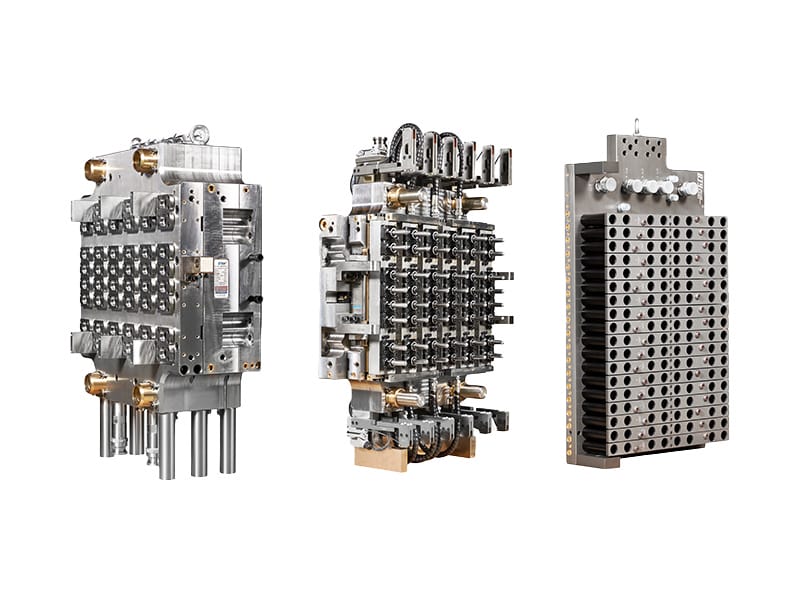

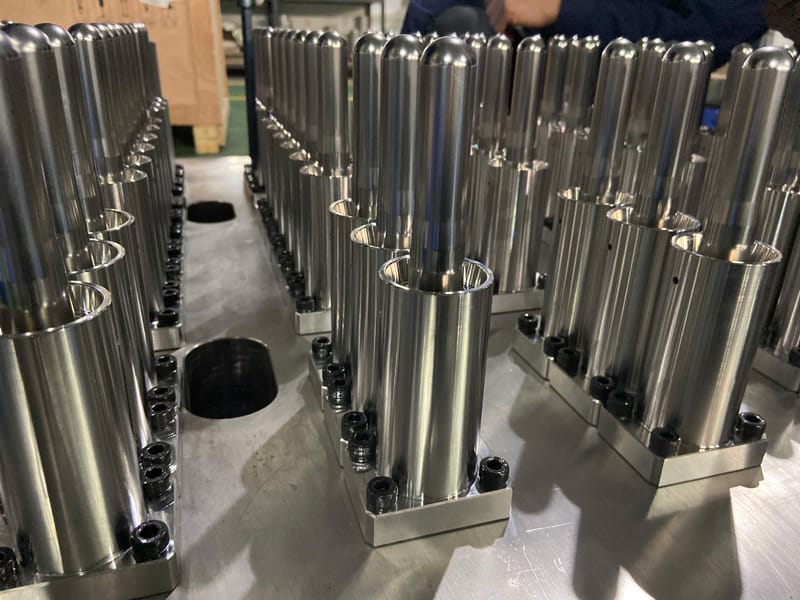

PET Preform Injection Molds

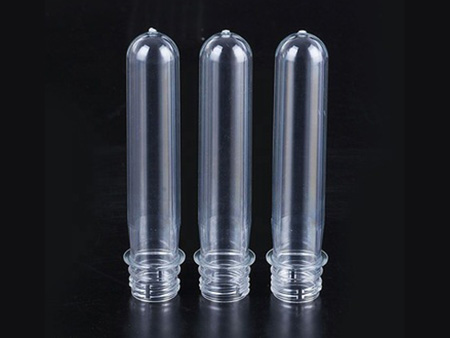

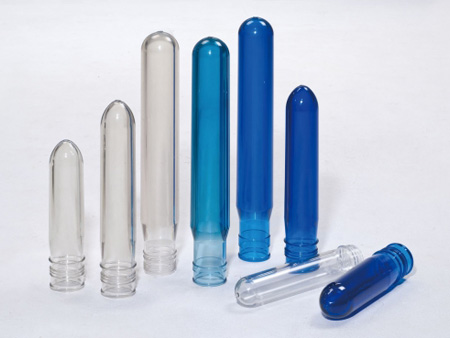

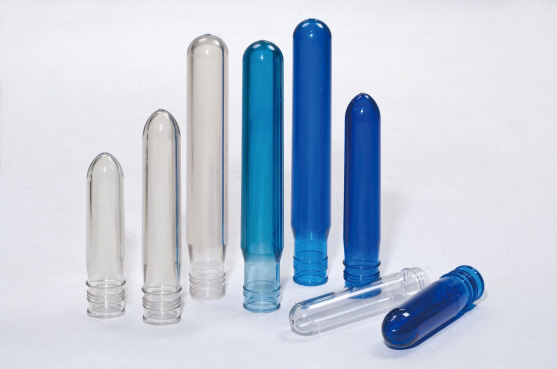

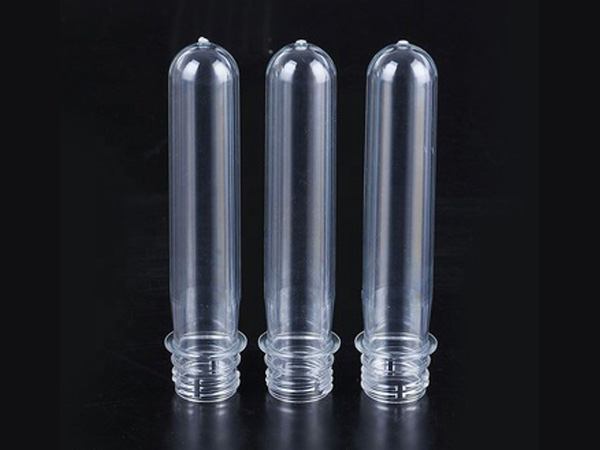

PET injection molds are high-precision injection molds engineered to produce PET preforms, widely used in packaging for beverages, edible oils, cosmetics, and more.

Applications
Beverage Sector: Preforms for mineral water and carbonated drink bottles.
Food Packaging: Preforms for edible oils and condiment containers.
Daily Essentials: Preforms for cosmetics and cleaning product bottles.
Request a Quote
Available blow cavity: 32 cavities, 48 cavities, 56 cavities, 72 cavities, 96 cavities, 128 cavities, 144 cavities
Neck diameter: Φ28mm (1716, 1810, 1881) ,26/22mm, 29/25mm, Φ38mm, etc.
Suitable for: injection blow molding machine from different brands including HUSKY, NETSTAL, SIPA, KM, HUAYAN, etc.
Applications of preforms: used as beverage bottle, carbonated bottle, water bottle, edible oil bottle, medicine bottle, etc.
Mold frame: made using S316 mold steel material and undergoes electroplating to achieve high corrosion resistance; hardness to within 30-35 HRC
Life cycle: 10 million cycle times
  • PET Preform Injection Molds
  • PET Preform Injection Molds
  • PET Preform Injection Molds
  • PET Preform Injection Molds
Key Features
Precision Molding: Cavity tolerances controlled within ±0.03 mm, ensuring consistent preform dimensions for seamless blow molding.
Hot Runner System: Minimizes cold sprues and runner waste, boosting raw material efficiency and cutting production costs.
Efficient Cooling Design: Optimized water channel layout shortens molding cycles (typically 10-15 seconds), driving higher productivity.
Multi-Cavity Options: Commonly available in 16 to 144 cavities, tailored to diverse capacity needs and high-speed injection machines.
Compatible Equipment: Works with top brands like HUSKY, NETSTAL, SIPA, KM, KAT, and more.
Can you develop and implement a plan to reduce the weight of my preforms?

Absolutely. Provide your preform drawings and current equipment brand and model, and we’ll create a tailored plan. Once approved, we’ll put it into action.

What information do I need to provide for a preform mold quote?

For a preform mold quote, please include:

Injection machine brand and model
Preform drawings
Number of cavities for the mold
Whether you need a full mold (or just the hot runner, cold half, or take-off robot for preform removal)
Your contact details
What if I only need the cold half mold? (Or hot runner, or take-off robot?)

For just a cold half mold, share the injection machine brand and model, preform drawings, and cavity number. If the quote works for you, we’ll confirm further details as needed.

Can you test and inspect preform molds before shipping?

Yes, we conduct thorough testing before every shipment.

Can you design a lightweight version of my preform?

Definitely. Our experienced, expert design team is ready to provide lightweight design services tailored to your needs.

What Can We Do for Your PET Preform Molds?
Project Upgrades: We refurbish and enhance existing molds to boost their lifespan and production efficiency.
Lightweight Design: We reduce preform weight without compromising bottle strength, helping you cut costs effectively.
Looking for Comprehensive Tooling Project Support?

Connect with Us for Customized Mold Solutions

E-mail: coco.yang@baijinyi.cn
What We Do
ADVANCED PLASTIC MOLD TOOLING SOLUTIONS

We specialize in the design and manufacturing of blow molds for stretch blow molding machines, injection molds for plastic processing equipment, and services such as mold refurbishment and modification. We also supply standard and custom-designed components compatible with major blow molding machine brands including SIDEL, Krones, SIPA, KHS, SACMI, Tech-Long, and Newamstar, as well as injection molding machines such as Husky, Netstal, SIPA, and Aoki.

About Us
Other Products
  • Cap Compression Mold
  • Spare Parts for Blow Molds and Blow Molders
  • Spare Parts for Filling Machines
  • Spare Parts for Injection Molding Machines
  • Blow Mold Tooling

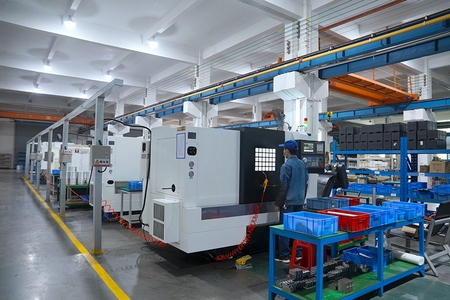

  • Semi-Precision Machining AreaSemi-Precision Machining Area
  • Assembly CenterAssembly Center

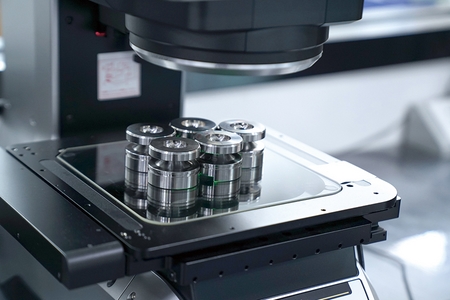

  • Keyence Image Dimension Measurement SystemKeyence Image Dimension Measurement System
  • Zeiss Coordinate Measuring Machine with 0.002mm Measuring AccuracyZeiss Coordinate Measuring Machine with 0.002mm Measuring Accuracy

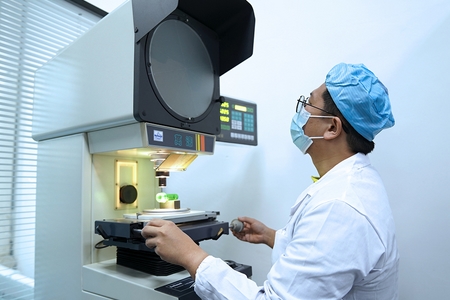

  • High Resolution Profile ProjectorHigh Resolution Profile Projector
